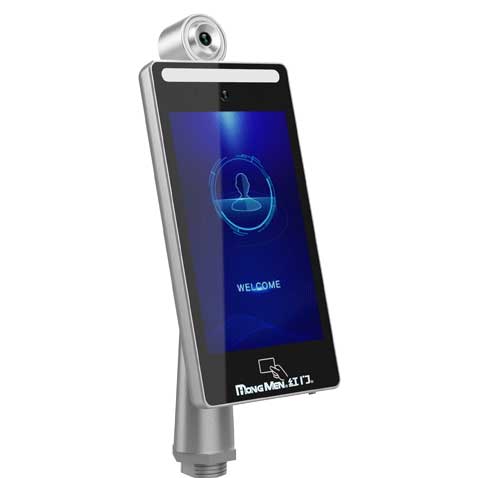

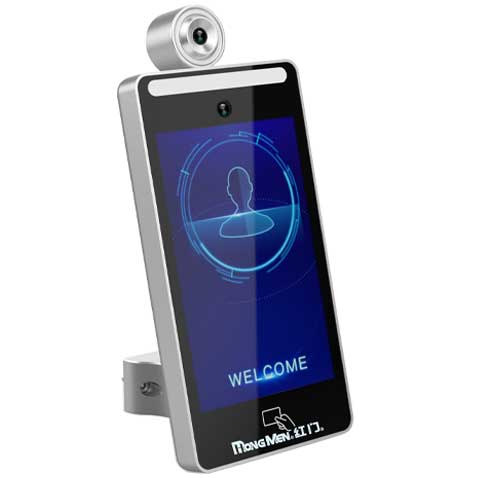

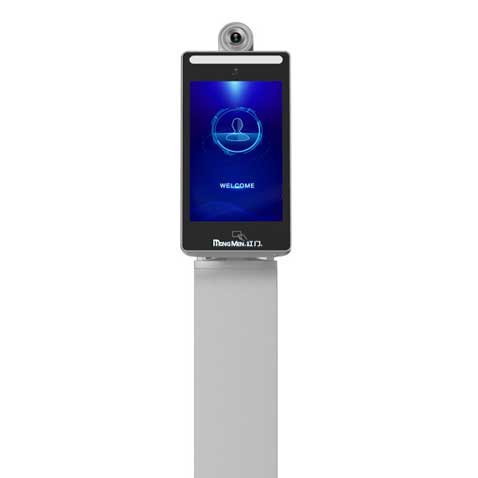

Facial Recognition DFWG02

>    Dynamic detection, rejected picture or vedio.

>    200000 facial capacity.

>    Could detect person within 0.3m-2.5 m distance.

>    Three modes of identification:Face,card or face & card.(white list recognition)

contact now

Product Description


RK3288 Cortex-A17, 4-core 1.8GHz

OS :

Android 5.1

Recognition Rate :


Recognition Speed :

≤1s (20000)

Operation Voltage :

 AC 220V / DC 36V

Operation Temperature :

 -30°C to 75°C

Display :

8'' LCD 800*1280

Hybrid Recognition :

Face/ Card/ Face& Card


Main Features

>    The dynamic face recognition terminal adapts to the real-name verification scenarios of various pedestrian exits, such as construction sites, schools, office buildings, commercial centers, communities, scenic spots and other pedestrian entrances and exits.

>    Face recognition accuracy rate is as high as 99.9%

>    Binocular camera module, dual algorithm fusion, multi-pattern recognition (1:1/1:N), higher recognition accuracy,faster Identify Speed.

>    The host supports the Wiegand interface to connect with the personnel gate and the access control host, and acts as a face recognition reader.

>    Standard with TCP/IP connection, 2.4GHz WIFI, wiegand 26&34.

>    Support broken network face recognition, disconnected network to open the gate.

>    Accommodates a range of facial positions (angles, motion) and poor lighting conditions (night & day vision), companies can enhance the look of their corporate reception areas and secure access points with the terminal's sleek stylish design.


Basic Parameters CPURockchip RK3288 Cortex-A17, Quad-core processor 1.8GHz
 Display8”, LCD 800*1280
 Built-in memoryEMMC 8GB
General Parameters  MaterialAluminium Alloy & ACRYLIC
 Working temperature-30°C ~ 75°C
 Relative humidity≤90%
 IP RatingIP 66
 Hybrid RecognitionFace/ Card/ Face& Card
Performance Image Sensor1/1.8" Progressive Scan CMOS Sensor, 2.1MP CMOS Image Sensor
 Camera Shot6mm(Optional)
 Recognition Rate≥99%
 Recognition Speed≤1s(20000)
 Recognition Distance0.3m~2.5m
 Recognition Angle0~30 degrees
 Power SupplyInput: AC 220V; Output: DC 12V
 Rated current3.3A±5%
 OSAndroid 5.1
 External DeviceSupport
 WiegandSupport Wiegand 26& 34
 Wired NetworkNetwork RJ45 10M/100M(Self-Adaptive)
 Wireless Network2.4Ghz



         1. Standard warranty for all components is valid for 12 months from the date of delivery
         2. This warranty does not include damages caused by:
               a. Wear and Tear
               b. Theft
               c. Accidents
               d. Act of God & Natural Disaster
               e. Unstable power supply (i.e. inconsistent voltage or lightning)

Project Reference:
