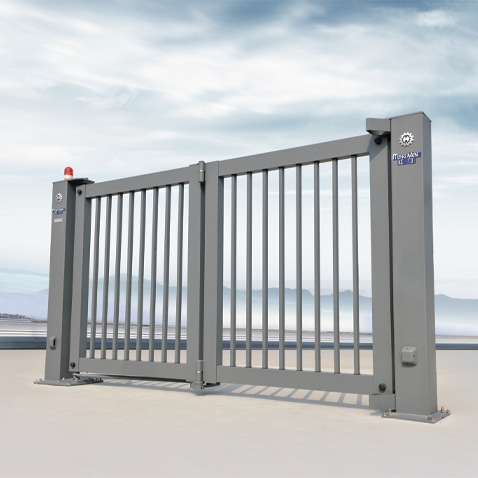

HDR - 51A


The Bi-folding gate was designed with space constrained properties in mind allowing you to have an automatic gate and still have room to park your car.



contact now


Detailed Product Description


 Material:

        Aluminium Alloy& Galvanized      Certification:CE Certified Product

 Operation:

Wireless Remote Control  Wireless Band:  433MHz

Operation

     Voltage:

    220V AC ±10% Operation Temperature:     -25°C to 70°C

Surface

 Treatment:

Powder Coated Colors:    Silver /Gray /Customized




Main Features :

Motor Overload Protection

The motor has overload and overheating protection function to protect and prolong the life span of the motor. During an outage, the clutch can be disengaged to open the gate manually with easy & steady.


EMO Button (Emergency Stop Button)

Emergency stop button is used while any emergent problems happens.


Modular Design

The gate can be disassembled and pack in groups, convenient for transportation and easy to install on site.

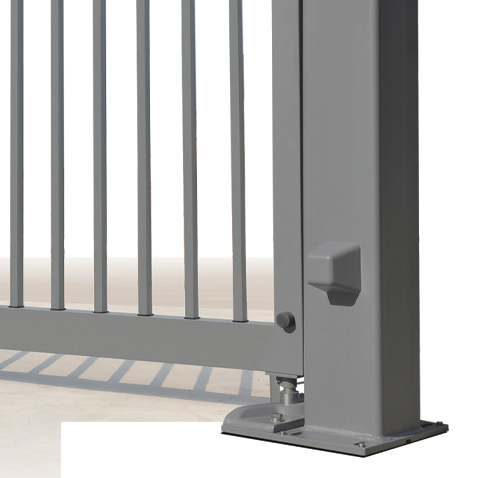

Trackless Operation

The gate does not need any rails/track to operates. It generates less noise compare to on trak gates.


Smart Power Outage Clutch

Elegant key-type clutch can easily change to manual mode during a power outage by insert a special key into the hole of the clutch and turning it at 90 degree.


Wireless Remote Control

Carry it on you and control the gates opening and closing conveniently any time, the control distance up to 50M.


Powder Coating

Customized gate colors, there are many surface treatment ways and colors for selection.


Anti -Collision IR Sensor

Equipped with infrared secure protection unit, the machine can guarantee Personnel security.


Anti -Climb Photo Cell

The gate also equips with anti-climb alarm system, when there is an obstacle detected on top of the gates, the alarm system will turn on siren.










Material Specification:

  Description                             Material

Hardness (HW)

Specification (mm)
  Front Gate Frame  Q235   /200*200*d5.0
  Rear Gate Frame
  Q235  /200*200*d3.0
  Auxiliary Gate Frame

  6003-T5

  10-132.5*2.5*d1.5
  Slide Bar
  6003-T5  10-13120*74*d2.5
  Upright  6003-T5  10-13120*85*d2.5



Technical Specification:

  Operation Voltage                      220V ±10%, 50Hz-60Hz
 Operation Temperatire   -25°C to ﹢70°
  Environment
  <90%
 Operation Speed

  16m/mim

  Motor Power Rating
  250W
  Motor RPM  1400r/min
IP Rating  IP44
Insulation Grade
  F
Speed Reduction Ratio  1000:1
Remote Distance  50m(Empty Space)




Warranty:


         1. Drive Motor is warranted against manufacturer’s defect for lifetime
         2. Standard warranty for all components is valid for 12 months from the date of delivery
         3. This warranty does not include damages caused by:
               a. Wear and Tear
               b. Theft
               c. Accidents
               d. Act of God & Natural Disaster
               e. Unstable power supply (i.e. inconsistent voltage or lightning)

Project Reference :







  Project Information: Private Residence


  Product Model: HDR-51A


  Installation: Unilateral Opening


  Completion Date: 2017


  Services: Consultancy, Manufacture, Installation, Commissioning, Maintenance

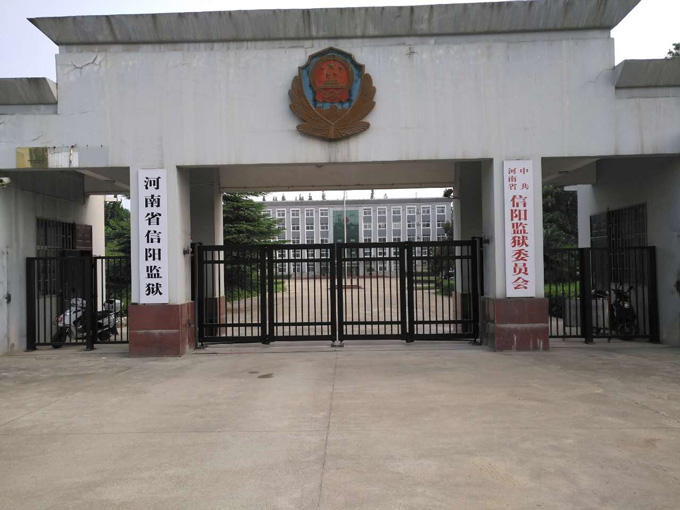

  Project Information: Judicial administrative organs


  Product Model: HDR-51A


  Installation: Unilateral Opening


  Completion Date: 2017


  Services: Consultancy, Manufacture, Installation, Commissioning, Maintenance
