Automatic Folding Gate -RD Series

是的范德萨范德萨

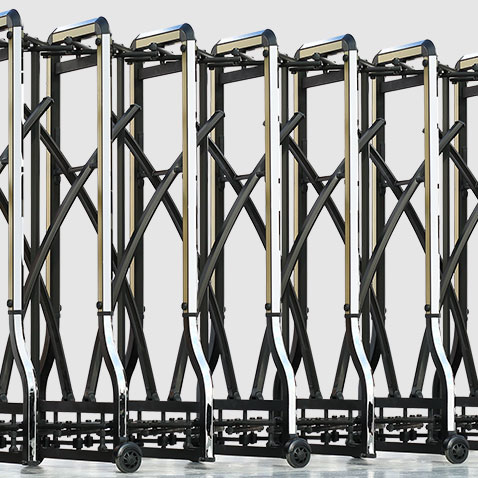

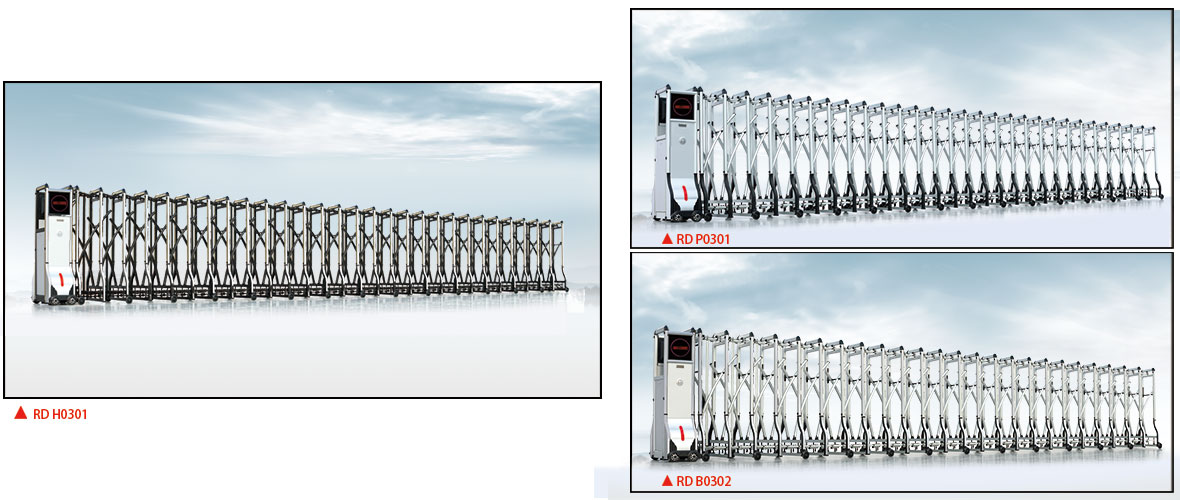

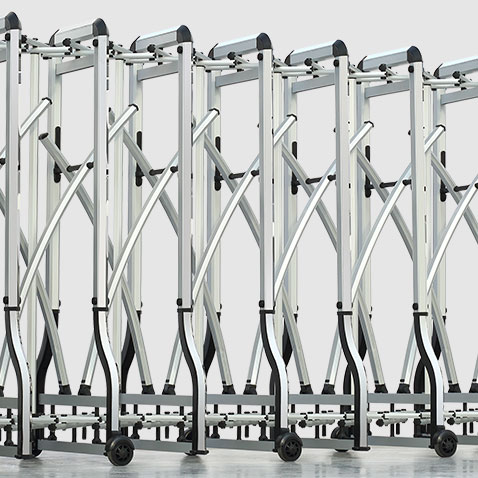

H0301 Configuration: Using high strength alloy aluminum (Pearl Black), as the main material and mounted with sparkling gold and plastic plates on the sides and imported 8K stainless steel plates on the front.

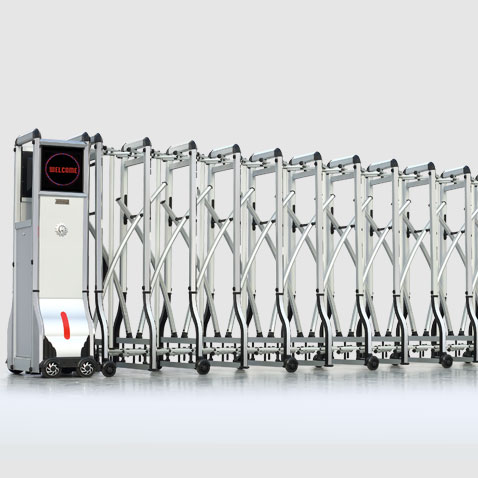

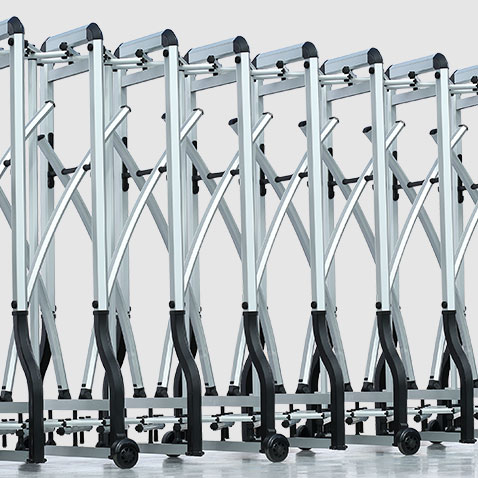

B0302 Configuration: Using high strength alloy aluminum (Glossy White), as the main material and no mounted sides and imported 8K stainless steel plates on the front.

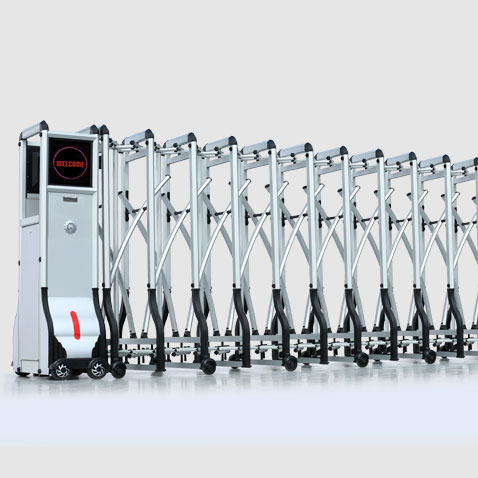

P0301 Configuration: Using high strength alloy aluminum (Glossy White), as the main material and no mounted sides and mounted front.




佛挡杀佛

image.png都快来撒大家快来撒即可了 1.  CE Certified.


contact now

Detailed Product Description


Material :

Aluminium Alloy

Certification :

CE Certified Product

Operation :

Wireless Remote Control

Wireless Band :

433MHz

Operation Voltage :

AC 220V / DC 36V

Operation Temperature :

-40°C to 80°C

Surface Treatment :

Powder Coated

Colors :

Silver /Black /Customize





Main Features :

Motor overload protection

The motor has overload and overheating protection function to protect and prolong the life span of the motor. During an outage, the clutch can be disengaged to open the gate manually with easy & steady.



Multi-Language LED Display (Optional)

Equip with LED Display for additional security and visibility.



Intelligent Self-Align (ISA) Motor (Optional)

The drive mechanism is used Intelligent AC Head Unit, intelligent digital navigation technology, trackless and automatic skew correction.



Trackless Operation

The gate does not need any rails/track to operates. It generates less noise compare to on track gates.



Smart Power Outage Clutch

Elegant key-type clutch can easily change to manual mode during a power outage by insert a special key into the hole of the clutch and turning it at 90 degree.



Anti- Collision IR Sensor

The gate to automatically retract when a person or object is detected as far as 30-50cm away, thus ensuring the safety of vehicle and pedestrians.



Wireless Remote Control

Carry it on you and control the gates opening and closing conveniently any time, the control distance up to 50M.



Anti- Climb Photo Cell

The gate also equips with anti-climb alarm system, when there is an obstacle detected on top of the gates, the alarm system will turn on siren.



Windproof Structure

All section bars apply V type design to significantly reduce the wind resistance and enhance the anti-wind capability of doors.



Durable in use

The moving parts adopt the high grade anti-wear materials, the running wheels shows no apparent wear and tear after a 3000,000 -time swing test over a 10m distance. Sand or pebbles in rainy or stormy weather do not affect the normal operation of the electric gate.



Note: Although the use of the V-shape design and increased wheel gauge greatly increase the gate frames’ wind resistance, it is recommended that wind-resistant device equipped with guiding bars for gates installed in coastal and windy areas.

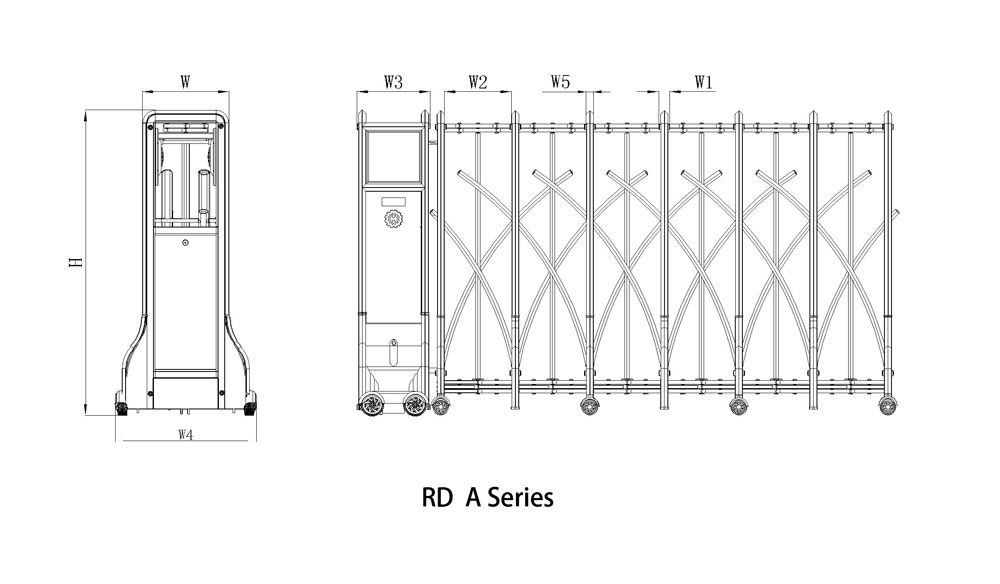

RD-A Series-Drawing.jpg

   Product Specification

H
WW1W2W3W4W5
RD A Series1.3/1.41.5/1.6/1.7/1.8/1.9/2.0M
460mm
60mm320mm382mm765mm40mm



   Electrical Specification

  H0301  P0301  B0302
     Main Frame:

  47.5*42*1.0

  (Aluminum Alloy)

  65.7*39.2*1.0

  (Aluminum Alloy)

  47.5*39.2*1.0

  (Aluminum Alloy)

       Inner Cross Tube:

  55*29.8*0.9

  (Aluminum Alloy)

  55*27.2*0.9

  (Aluminum Alloy)

  55*27.2*0.9

  (Aluminum Alloy)

  Decorative Side Panel:

  40*22.7*0.6

  (SUS 304)

  /

  40*22.7*0.6

  (SUS 304)

  Voltage:        Operation Temp:erature
       Relative Humidity:
  Moving Speed:
              220V ±10% , 50/60Hz
-40°C~80°C
  ≤90%
  18m/min
    IP Rating:
        Insulation Grade:
          Receiver Frequency:
  Remote Distance:
  IP 44
  E
  434MHz
                50m(Empty Space)


Warranty:


         1. Drive Motor is warranted against manufacturer’s defect for lifetime
         2. Standard warranty for all components is valid for 12 months from the date of delivery
         3. This warranty does not include damages caused by:
               a. Wear and Tear
               b. Theft
               c. Accidents
               d. Act of God & Natural Disaster
               e. Unstable power supply (i.e. inconsistent voltage or lightning)



Project Reference :

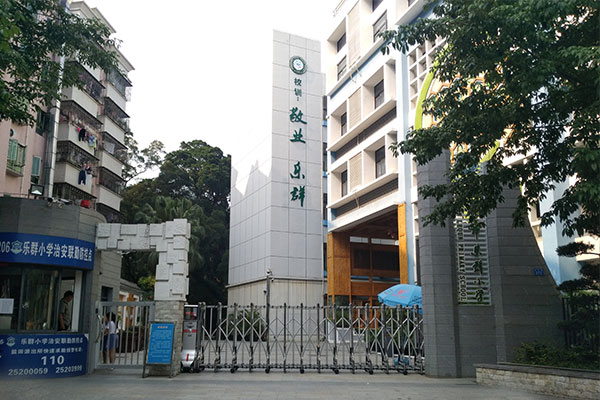

  Project Information:  LEQUN Primary School


  Product Model: B0301


  Installation: Unilateral Opening


  Completion Date: 2018


  Services: Consultancy, Manufacture, Installation, Commissioning, Maintenance

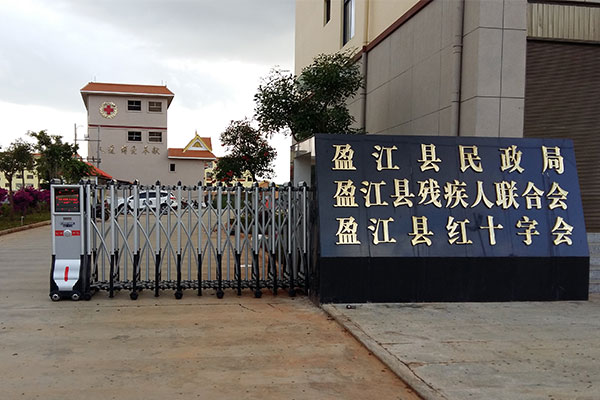

 Project Information:  YINGJIANG County Institution


  Product Model: P0301


  Installation: Unilateral Opening


  Completion Date: 2016


  Services: Consultancy,Manufacture, Installation, Commissioning, Maintenance

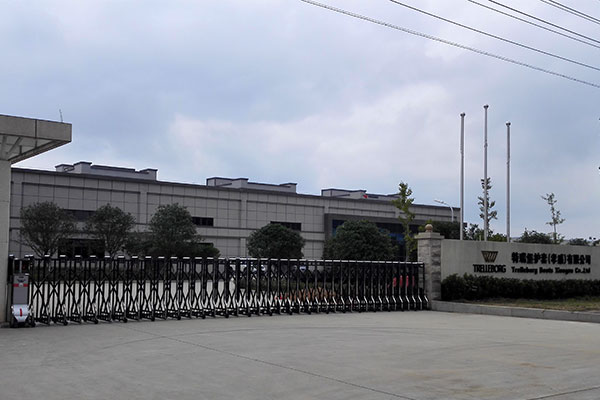

  Project Information:  Trelleborg boots (XIAOGAN) Co,.Ltd


  Product Model: H0301


  Installation: Unilateral Opening


  Completion Date: 2017


  Services: Consultancy, Manufacture, Installation, Commissioning, Maintenance
