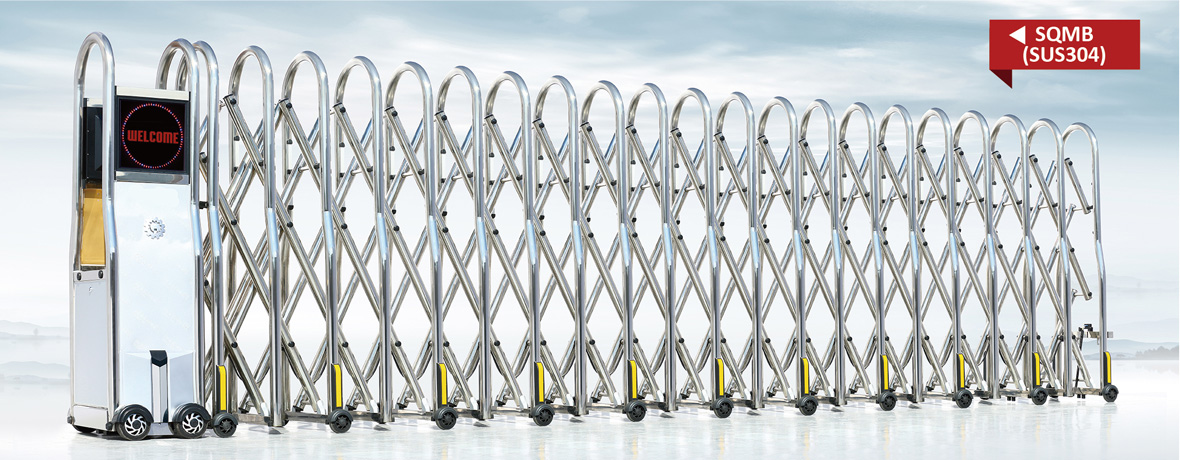

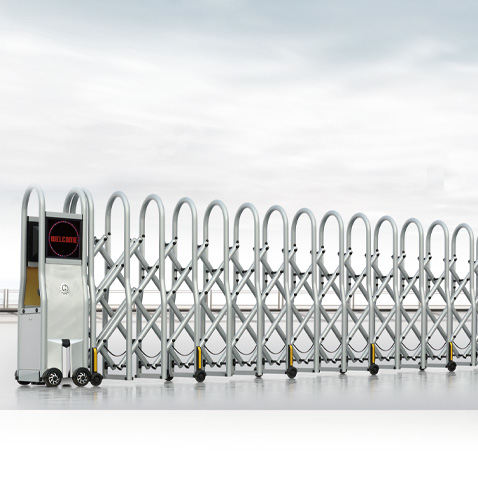

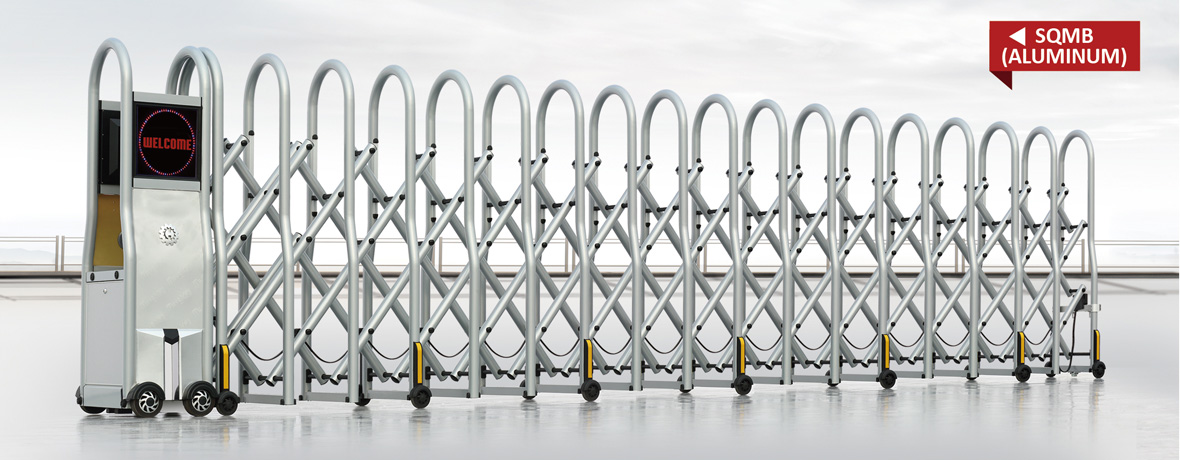

Automatic Folding Gate - SQMB

是的范德萨范德萨


佛挡杀佛

image.png都快来撒大家快来撒即可了 1.  CE Certified.


contact now

Detailed Product Description


Material :

Aluminium Alloy

Certification :

CE Certified Product

Operation :

Wireless Remote Control

Wireless Band :

433MHz

Operation Voltage :

AC 220V / DC 36V

Operation Temperature :

-25°C to 70°C

Surface Treatment :

Powder Coated

Colors :

Silver /Black /Customize







Main Features :

Motor overload protection

The motor has overload and overheating protection function to protect and prolong the life span of the motor. During an outage, the clutch can be disengaged to open the gate manually with easy & steady.



Multi-Language LED Display (Optional)

Equip with LED Display for additional security and visibility.



Intelligent Self-Align (ISA) Motor (Optional)

The drive mechanism is used Intelligent AC Head Unit, intelligent digital navigation technology, trackless and automatic skew correction.



Trackless Operation

The gate does not need any rails/track to operates. It generates less noise compare to on track gates.



Smart Power Outage Clutch

Elegant key-type clutch can easily change to manual mode during a power outage by insert a special key into the hole of the clutch and turning it at 90 degree.



Anti- Collision IR Sensor

The gate to automatically retract when a person or object is detected as far as 30-50cm away, thus ensuring the safety of vehicle and pedestrians.



Wireless Remote Control

Carry it on you and control the gates opening and closing conveniently any time, the control distance up to 50M.



Anti- Climb Photo Cell

The gate also equips with anti-climb alarm system, when there is an obstacle detected on top of the gates, the alarm system will turn on siren.



Windproof Structure

This gate is design with wind resistance, equip with Wind-resistant device enable ensure gates operate under windy condition.


One-Piece-Bended Tubular Frame

The main frame of SQM series is made of one-pieces-bended durable aluminum alloy. The smooth– tubular shape of the frames makes it exterior looks simple and elegant.


Specialness structure Design

The design of the curved frames has reduced PVC connectors and exposed parts. This is to strengthen the structure and increase the intensity, make gate operated smoothly.

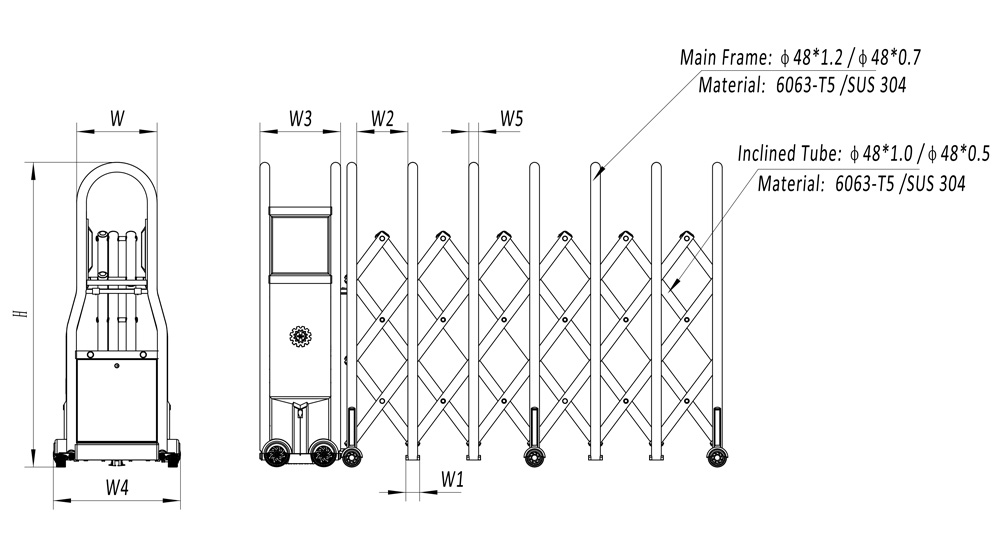

   Product Specification



  SQMB

H
W W1 W2 W3 W4 W5  Ratio(i)
  1.33m
  495mm
  68mm    282mm    398mm
  625mm
  48mm    4.7
    1.4/1.5/1.53/1.63m
  302mm    4.97
  1.7/1.83m  312mm  5.11
SQMBS1.43m282mm4.7
1.53m/1.63m302mm4.97
1.7/1.8m312mm5.11



  Electrical Specification
  Main Frame:
  Inner Cross Tube:
  Voltage:
  Operation Temperature:
  Relative Humidity:

  φ48*1.2 (Aluminium Alloy)

  φ48*1.0 (Aluminium Alloy)
  220V ±10% , 50/60Hz
  -25°C~70°C
  ≤90%
  φ48*0.7 (SUS 304)  φ48*0.5 (SUS 304)
  IP Rating:
  Insulation Grade:
  Moving Speed:
  Receiver Frequency:
  Remote Distance:
  IP 44
  E
  18m/min
  433MHz  50m(Empty Space)






Warranty:


         1. Drive Motor is warranted against manufacturer’s defect for lifetime
         2. Standard warranty for all components is valid for 12 months from the date of delivery
         3. This warranty does not include damages caused by:
               a. Wear and Tear
               b. Theft
               c. Accidents
               d. Act of God & Natural Disaster
               e. Unstable power supply (i.e. inconsistent voltage or lightning)



Project Reference :

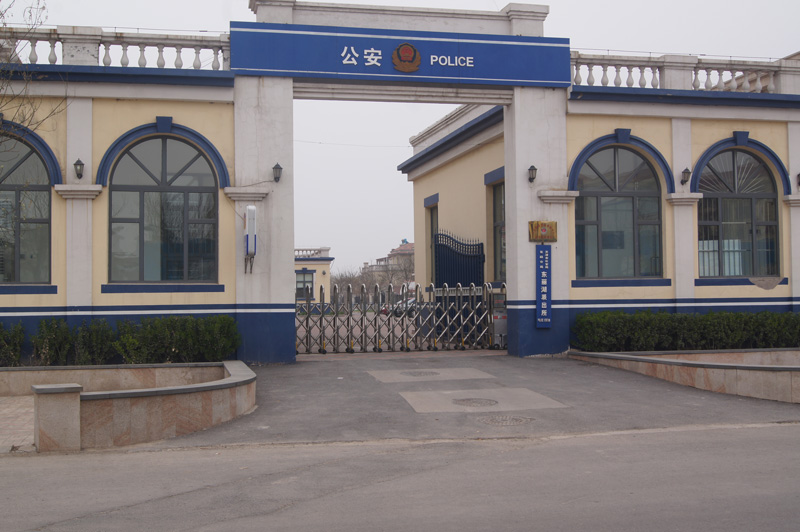

  Project Information:  Local Police Station


  Product Model: SQMBS


  Installation: Unilateral Opening


  Completion Date: 2015


  Services: Consultancy, Manufacture, Installation, Commissioning, Maintenance

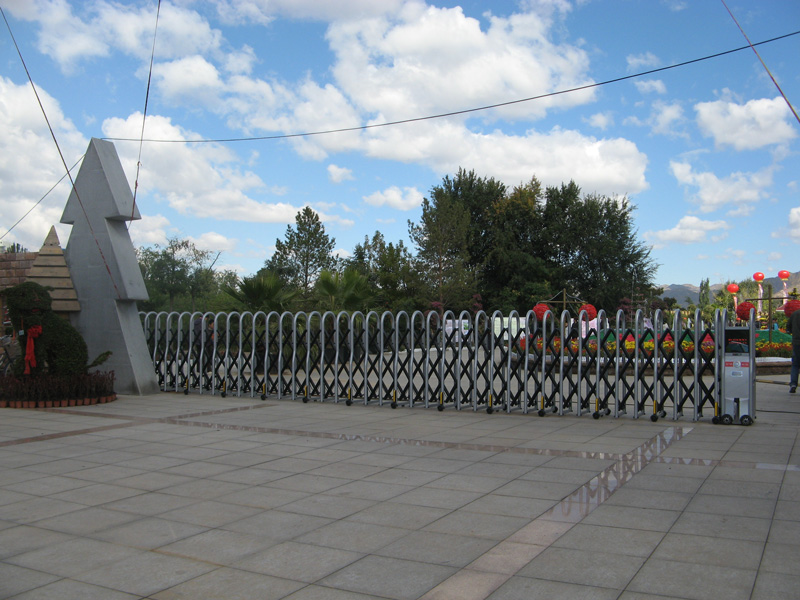

 Project Information:  jinxiu Park


  Product Model: SQMB


  Installation: Unilateral Opening


  Completion Date: 2012


  Services: Consultancy,Manufacture, Installation, Commissioning, Maintenance

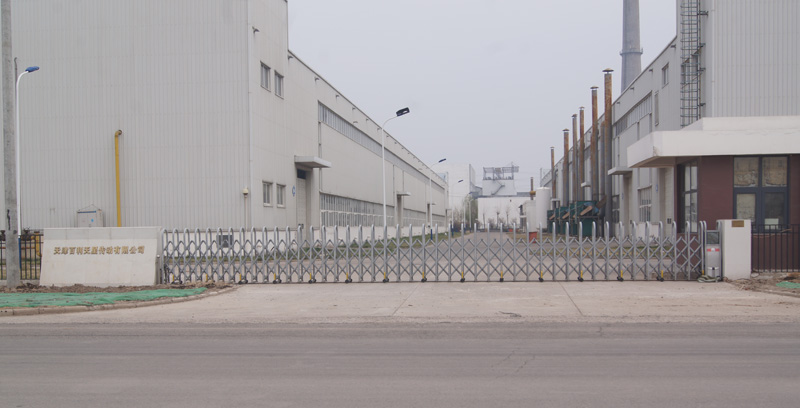

  Project Information:  Industrial Park


  Product Model: SQMB


  Installation: Unilateral Opening


  Completion Date: 2015


  Services: Consultancy, Manufacture, Installation, Commissioning, Maintenance
