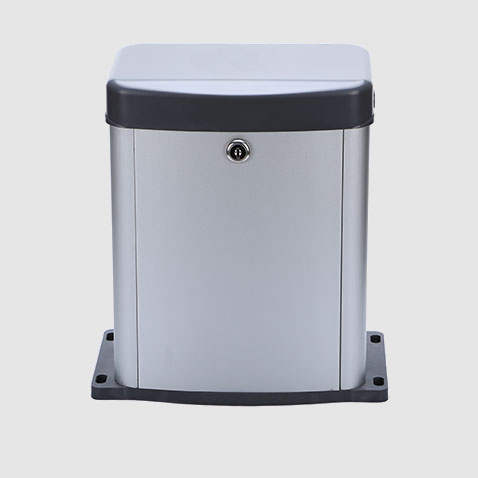

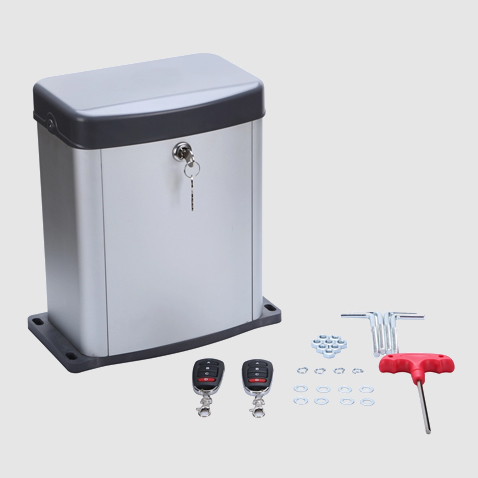

Gate Operator - HQD300

Residential / Light Commercial Slide Gate Operator

<    The HQD300 gate operator designed for residential use, weight up to 300 Kg and operating distance up to 8 meters.

<    CE Certified.

<    Built-in control board and 24V/4.5Ah backup battery.

<    User can select auto-close function.

<    Solar system compatible.

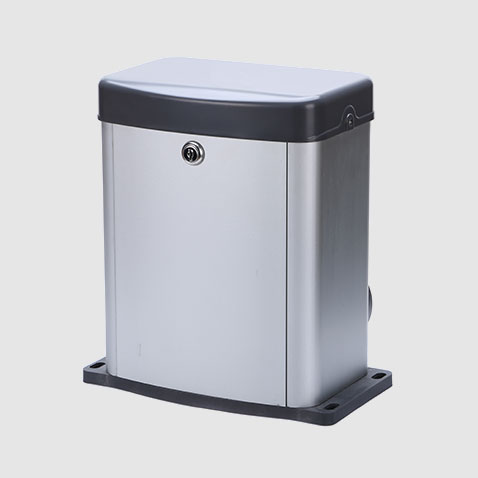

<    Brushed aluminum shell, novel appearance.

<    DC24V motor with built-in control unit.





contact now

Product Description


 Material :

   Aluminium Alloy

Certification :

   CE Certified Product

 Limit Switch :

   Electronic Limit Switch

Max. Gate Weight :

   300KG

 Operation  Voltage :

   AC 110V  / AC 220V

Operation Temperature :

   -20°C to 70°C

Drive Method:

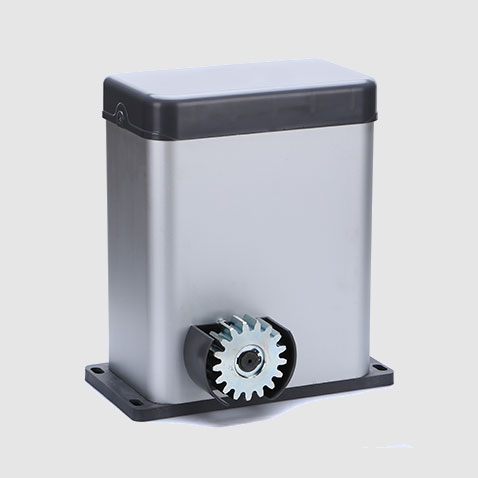

   Gear

Colors :

   Silvery Gray



Main Features

>    The automatic timer function that closes your gate after a pre-defined period, or the option to open the gate only partially for people to pass through.


>    In the event of a power failure, the rotation of the (key protected) release device makes it possible to open and close the gate manually.


>    The soft start and soft stop function guarantees stable, quiet gate travel.

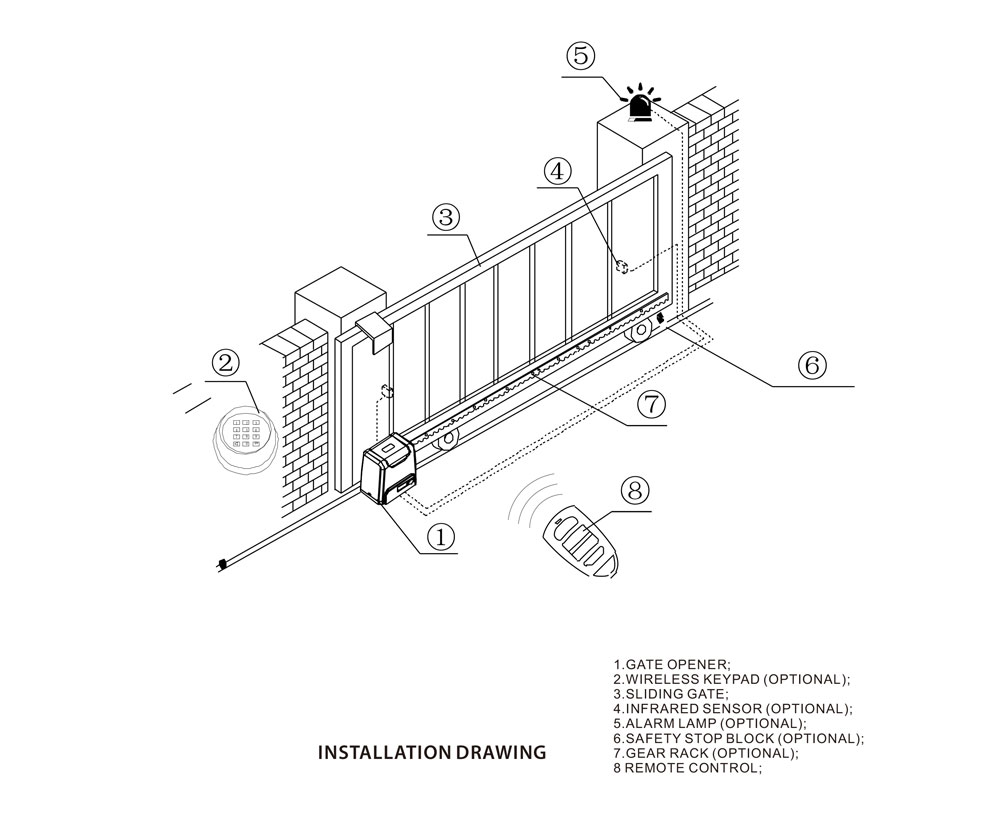

>    Can be equipped with solar panels, warning lights and infrared alarm and other safety equipment; it can be connected with access control system to realize automatic identification and access control.


>    The gate encounters obstacles or pedestrians, when it is opening, the gate will stop operation, if the gate encounters obstacles or pedestrians when it is closing, the gate will automatically retract.


>    DC 24V motor with built-in control unit and DC 24V 4.5Ah battery allows the gate to be opened and closed normally when there is power failure.



Input Voltage:AC 220V/50Hz; AC 110V/60Hz    Motor Power:DC 24V/100W
 Working Temperature:  -20°C to 70°CGate Moving Speed:13m/min
Limit Switch:Electronic Limit SwitchDriving Weight:Gear
Work Duty:S2 20minRemote Control Mode:   Single Button Mode
Remote Control Range: ≥30mReceiver Frequency:433.92Mhz
Maximum Gate Weight:  300KGPackage Weight:10KG
Output Torque:8N.mOutput Shaft Height:46mm
Noise:≤60dBBackup Battery:DC 24V 4.5Ah





Warranty:


         1. Standard warranty for all components is valid for 12 months from the date of delivery
         2. This warranty does not include damages caused by:
               a. Wear and Tear
               b. Theft
               c. Accidents
               d. Act of God & Natural Disaster
               e. Unstable power supply (i.e. inconsistent voltage or lightning)

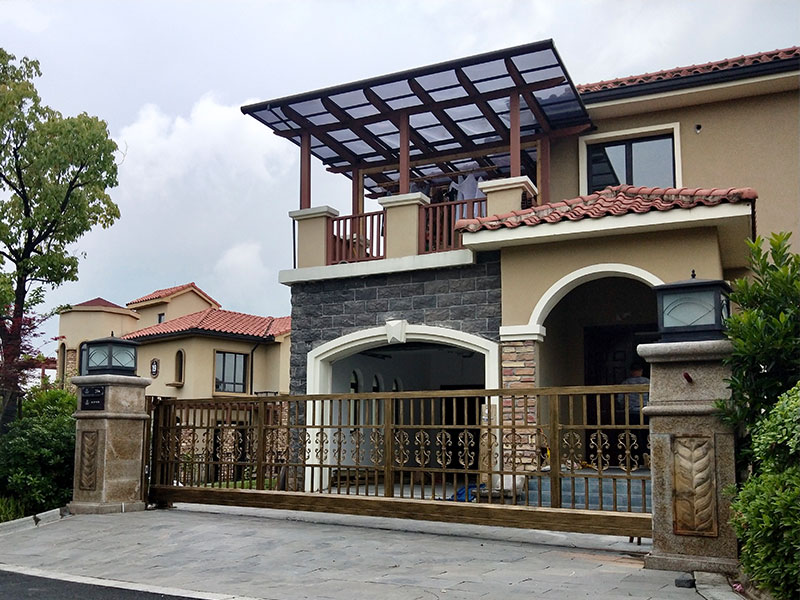

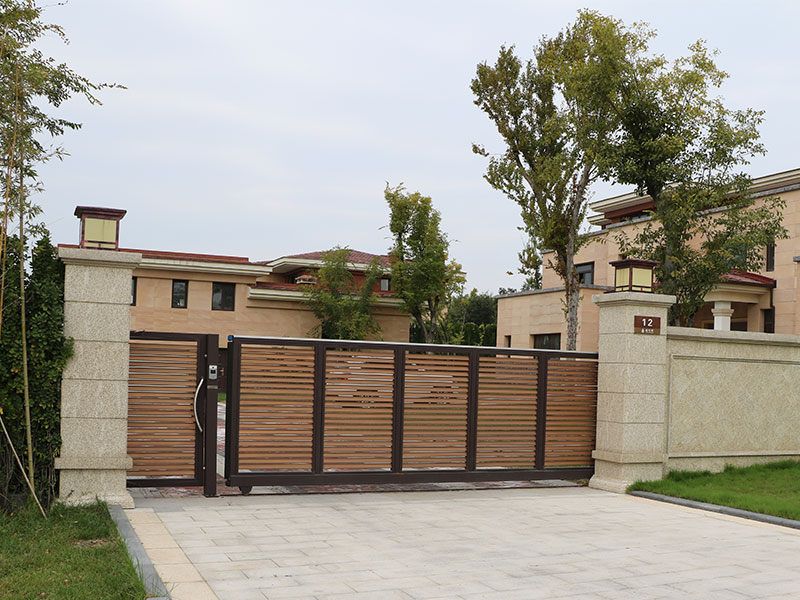

Project Reference:
