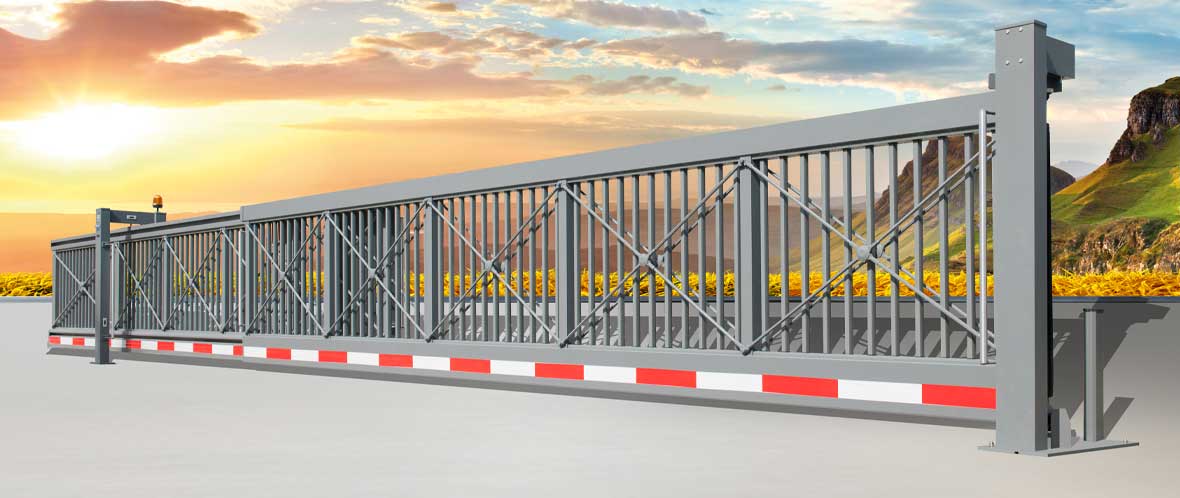

There are a number of benefits in choosing a cantilever sliding gate over the traditional track style, not need any wheels and rails, it makes suspension movement. It generates less noise compare to wheel and rail gates.

contact now

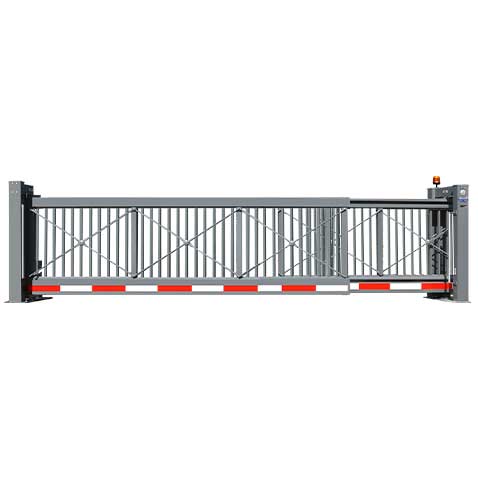

Product Description

Material :

Aluminium Alloy

Motor :

DC Brushless motor

Operation :

Wireless Remote Control

Wireless Band :


Input Voltage :

220V AC

Operation Temperature :

-40°C to 80°C

Surface Treatment :

Powder Coated

Colors :

Silver /Gray /Customize


Main Features :

Motor overload protection

The motor has overload and overheating protection function to protect and prolong the life span of the motor. During an outage, the clutch can be disengaged to open the gate manually with easy & steady.


EMO Button (Emergency Stop Button)

Emergency stop button is used while any emergent problems happens.

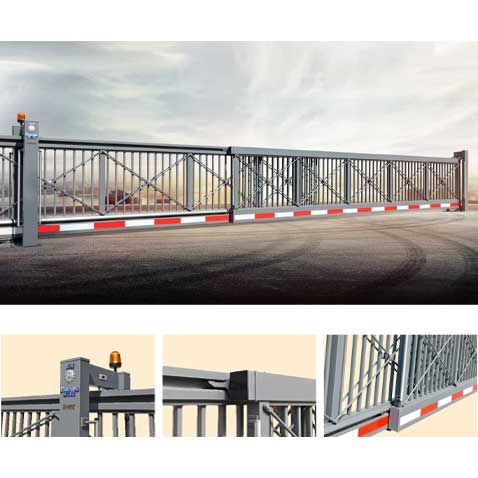

Modular Design

The gate can be disassembled and pack in groups, convenient for transportation and easy to install on site.


Trackless Operation

The gate does not need any wheels and rails, it makes suspension movement. It generates less noise compare to wheel and rail gates.


Smart Power Outage Clutch

In case of power failure, the gate comes with a unique key to unlock the clutch in order to manually open/close the gate.


Wireless Remote Control

Carry it on you and control the gates opening and closing conveniently any time, the control distance up to 50M.


Anti- Collision IR Sensor

The gate also equips with anti-collision function, when there is obstacle detected up to 600mm distance during closing mode, the gate will automatically retrieve and stop for 2 seconds.


Anti- Climb Photo Cell

The gate also equips with anti-climb alarm system, when there is an obstacle detected on top of the gates, the alarm system will turn on siren.


Security and Visibility

Equipped with caution lamp, it will rotate during gate in operation mode, to increase safety awareness.

  Product Specification

  Operation Voltage:      Control Voltage:
  Current:       Power:  Motor RPM:  Operation Temperature:
  220V      DC 310V  1.7A ±10%    300W
  2000r/min       -25°C to 75°C
  Insulation Grade:      Environment Humidity:      IP Rating:      Speed Reduction Ratio:      Remote Distance:  Receiver Frequency:
  E  ≤90%  IP44  30 : 1  50m (Empty Space)     433MHz


         1. Drive Motor is warranted against manufacturer’s defect for lifetime
         2. Standard warranty for all components is valid for 12 months from the date of delivery
         3. This warranty does not include damages caused by:
               a. Wear and Tear
               b. Theft
               c. Accidents
               d. Act of God & Natural Disaster
               e. Unstable power supply (i.e. inconsistent voltage or lightning)

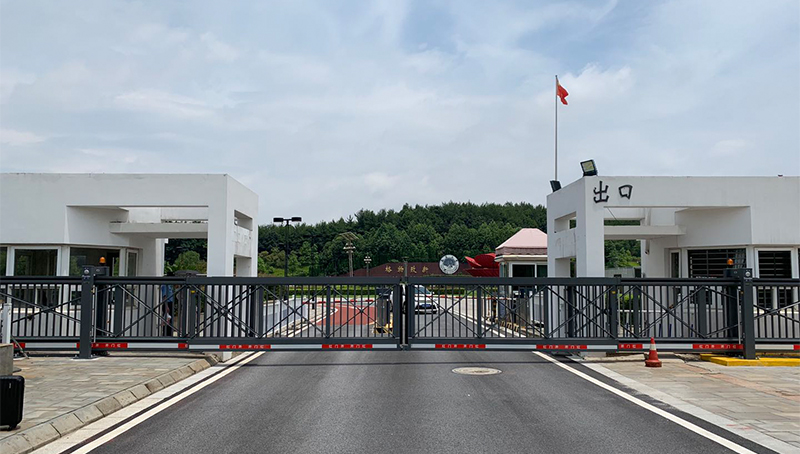

Project Reference :


Click to watch video >>>

  Product Model: HSG68

  Installation: Bilateral Opening

  Completion Date: 2020

  Services: Consultancy, Manufacture, Installation, Commissioning, Maintenance
