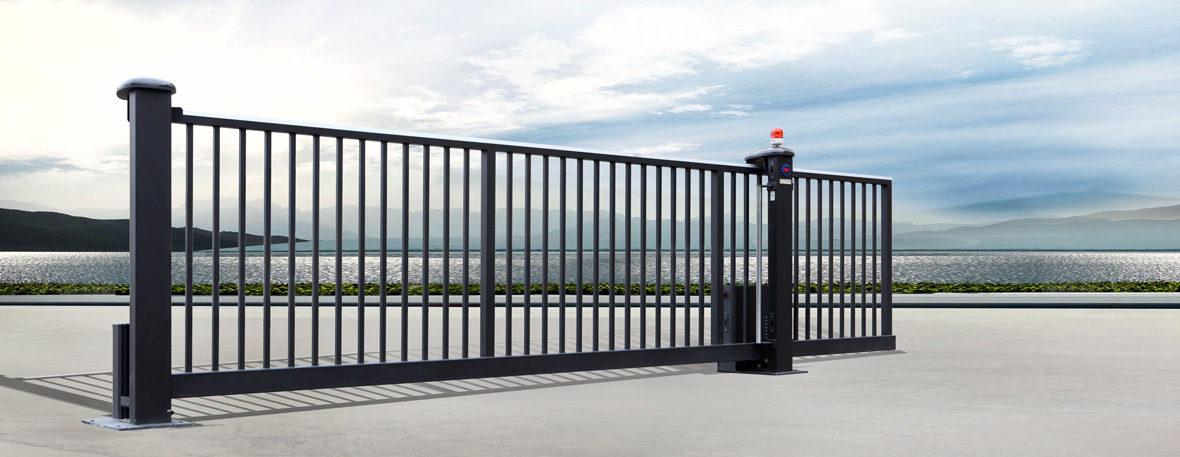

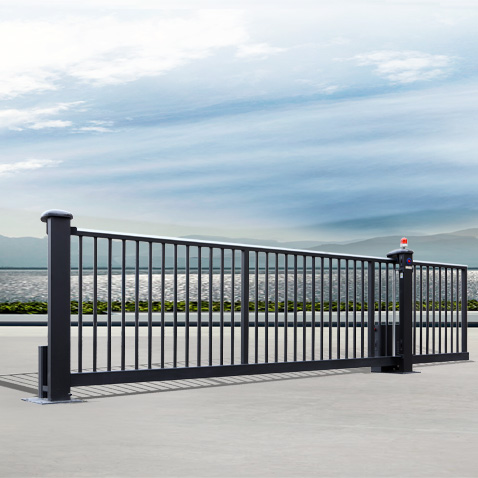

There are a number of benefits in choosing a cantilever sliding gate over the traditional track style, not need any wheels and rails, it makes suspension movement. It generates less noise compare to wheel and rail gates.
Product Description
Material : | Aluminium Alloy | Operation Voltage : | AC 220V / DC 36V |
Operation : | Wireless Remote Control | Wireless Band : | 433MHz |
| Operation Temperature : | -25°C to 70°C | Colors : | Sliver /Sliver Gary /Customize |
Main Features :
Motor overload protection
The motor has overload and overheating protection function to protect and prolong the life span of the motor. During an outage, the clutch can be disengaged to open the gate manually with easy & steady.
EMO Button (Emergency Stop Button)
Emergency stop button is used while any emergent problems happens.
Modular Design
The gate can be disassembled and pack in groups, convenient for transportation and easy to install on site.
Trackless Operation
The gate does not need any wheels and rails, it makes suspension movement. It generates less noise compare to wheel and rail gates.
Smart Power Outage Clutch
In case of power failure, the gate comes with a unique key to unlock the clutch in order to manually open/close the gate.
Wireless Remote Control
Carry it on you and control the gates opening and closing conveniently any time, the control distance up to 50M.
Anti- Collision IR Sensor
The gate also equips with anti-collision function, when there is obstacle detected up to 600mm distance during closing mode, the gate will automatically retrieve and stop for 2 seconds.
Anti- Climb Photo Cell
The gate also equips with anti-climb alarm system, when there is an obstacle detected on top of the gates, the alarm system will turn on siren.
Security and Visibility
Equipped with caution lamp, it will rotate during gate in operation mode, to increase safety awareness.

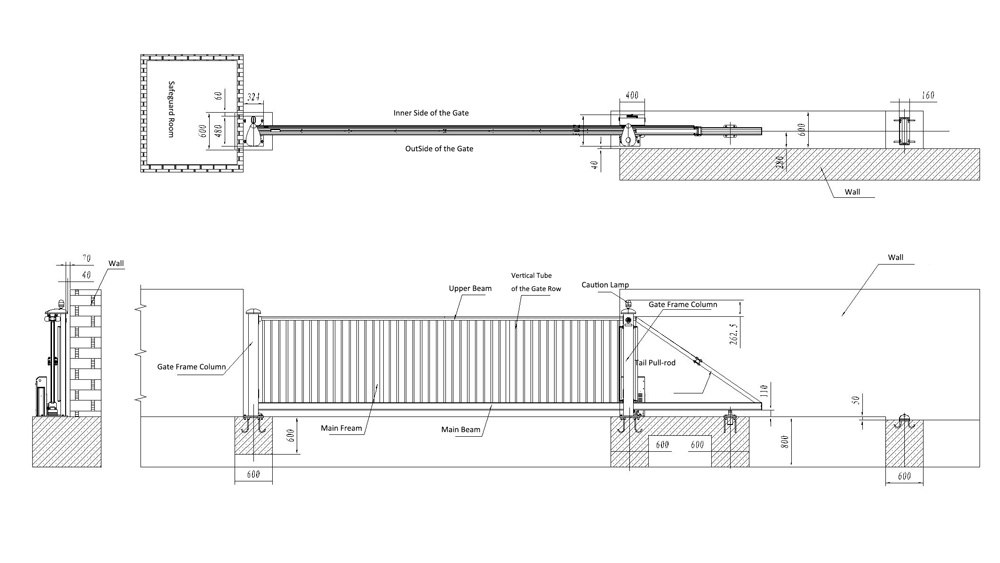

| Material Specification | ||
| Parts | Material | Specification (mm) |
Mian Beam | Q235 galvanized Steel Tube | 120*120*d4 |
| Upper Beam | Q235 galvanized Steel Tube | 60*60*d2 |
| Gate Frame Column | Q235 galvanized Steel Tube | 160*80*d3 |
| Vertical Tube of Gate Row | Q235 galvanized Steel Tube | 25*25*d1.2 |
| Main Frame | Q235 galvanized Steel Tube | 60*60*d2 |
| Pull Rod | Q235 galvanized Steel Tube | 60*60*d2 |
Product Specification | |||||
| Operation Voltage: | Control Voltage: | Current: | Power: | Motor RPM: | Operation Temperature: |
| 220V ±10% 50/60Hz | AC 220V | 1.5A | 250W | 1450r/min | -25°C to 70°C |
| Insulation Grade: | Environment Humidity: | IP Rating: | Speed Reduction Ratio: | Remote Distance: | Receiver Frequency: |
| E | ≤90% | IP44 | 30 : 1 | 50m (Empty Space) | 433MHz |
Warranty:
1. Drive Motor is warranted against manufacturer’s defect for lifetime
2. Standard warranty for all components is valid for 12 months from the date of delivery
3. This warranty does not include damages caused by:
a. Wear and Tear
b. Theft
c. Accidents
d. Act of God & Natural Disaster
e. Unstable power supply (i.e. inconsistent voltage or lightning)
Project Reference :

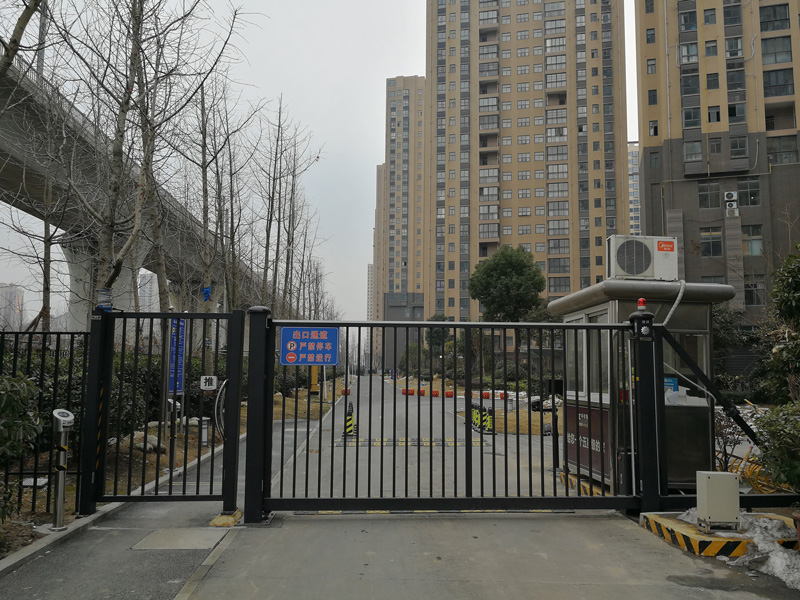

Project Information: Apartment

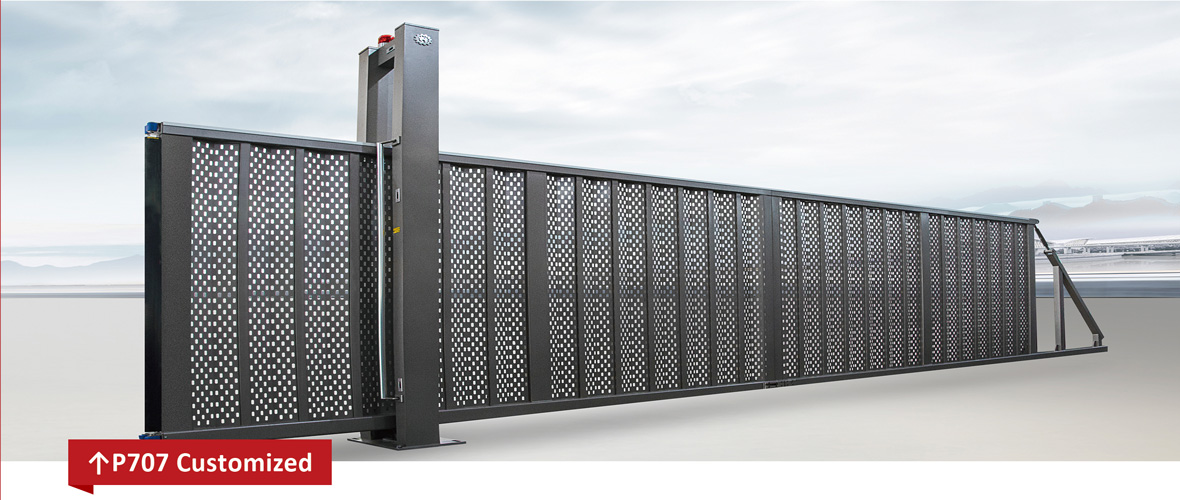

Product Model: P707
Installation: Unilateral Opening
Completion Date: 2015
Services: Consultancy, Manufacture, Installation, Commissioning, Maintenance

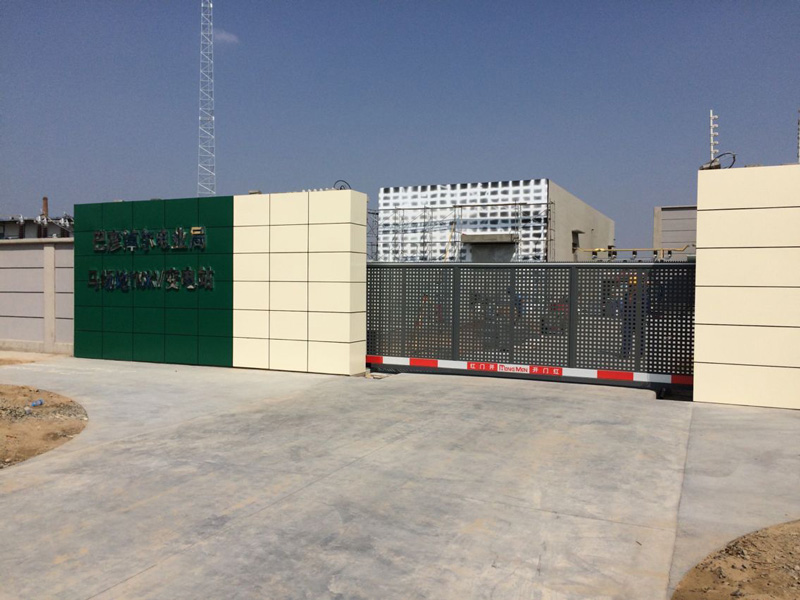

Project Information: Transformer Station
Product Model: P707
Installation: Unilateral Opening
Completion Date: 2014
Services: Consultancy, Manufacture, Installation, Commissioning, Maintenance

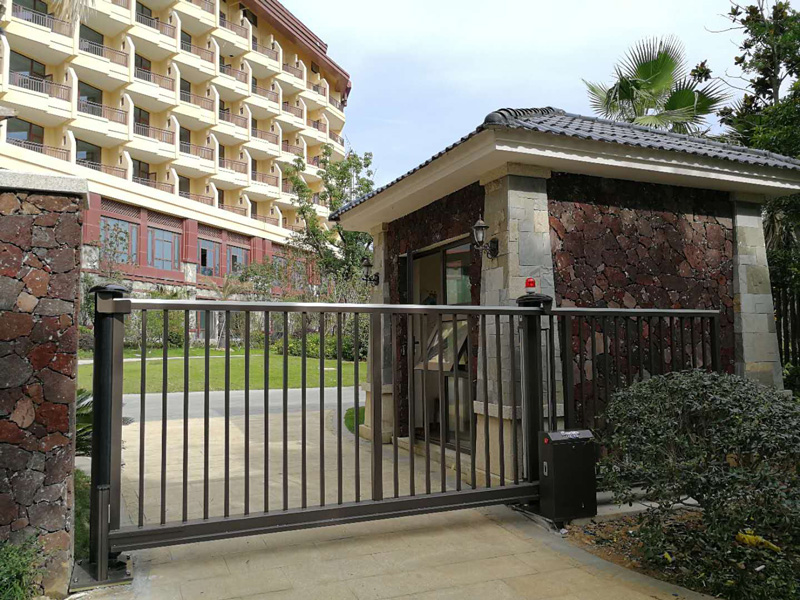

Project Information: Residence Community
Product Model: P707
Installation: Unilateral Opening
Completion Date: 2018
Services: Consultancy, Manufacture, Installation, Commissioning, Maintenance
