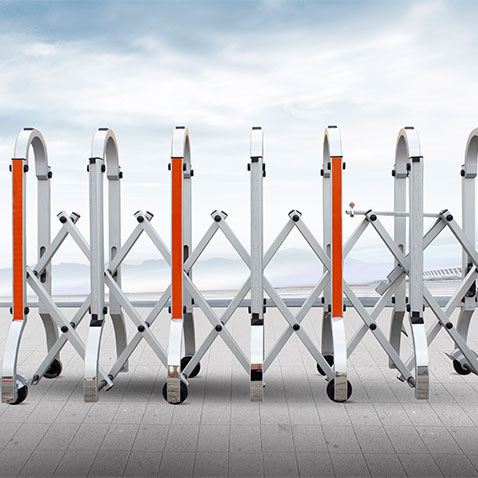

S608(Solar)


​Hongmen Crowd Control barriers are customizable, lightweight, portable barriers and retractable gates for crowd control requirements in all types of location. They are a very unique and attractive yet affordable solution to security control issues for both foot and street traffic.



contact now

Detailed Product Description


             Material:            Aluminium Alloy  ​      Certification:   CE Certified Product
Length:


  2m long expanded, 0.46m collapsed sections



Height:

0.88/1.2m

Width:

0.55m at base

 Weight:     32kg

Surface

    Treatment:

Powder Coated  Colors:      Silver /Gray /Customized



​Main Features:


Perfect Combination of Security & Versatility

Main material uses industrial grade version 6063-T5 aluminum alloy, the gates are fully retractable, diverse design aims at many varied occasions.


Inter-Locking Connections System

Lock into place at desired locations, connect multiples sections, and also lock open/close with universal key.


Powder Coated

Using one of the best powder (Brand: Interpon), makes every colors is GREEN

Protection against UV, corrosions and Color Fading*


Custom Lettering, Logo & Reflective Stickers

Come with custom lettering and choice of reflective tape colors.


Portable

One person can move and deploy the expanding gate or multiple expanding gates to easily define the barricade area.


Solar illumination Night Lighting (S608 Solar)

Panels with lithium cells power LED lights for additional security and visibility.



Specifications:

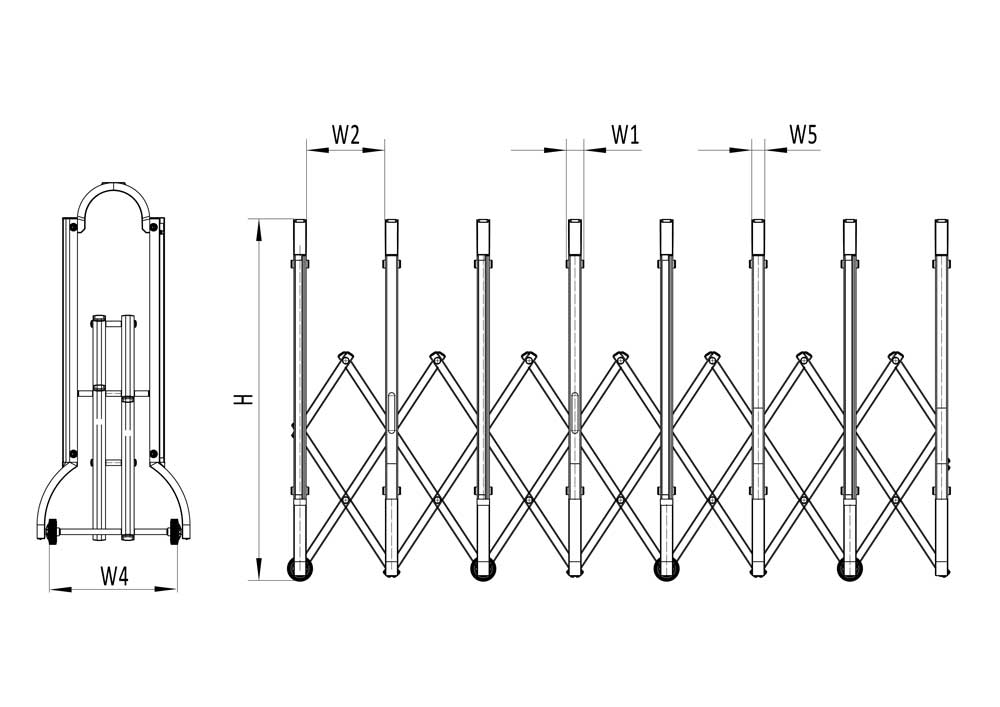

Crowd Control Gate Specifications
    Model    H    W1    W2    W5
    S608(Solar) &S608(Non-Solar)            0.88m/1.2m

    64mm

    286mm

    44mm

    SQMA

    1.33m/1.8m

    58mm

    282mm-322m

    38mm

    SQMB

    1.33mm

    68mm

    282mm-312mm

    48mm

    HRGA

    1.5m

    46mm

    275mm

    25mm

    W Series

    1.3m/1.8m

    58mm

    265mm

    35mm






Warranty:


         1. Drive Motor is warranted against manufacturer’s defect for lifetime
         2. Standard warranty for all components is valid for 12 months from the date of delivery
         3. This warranty does not include damages caused by:
               a. Wear and Tear
               b. Theft
               c. Accidents
               d. Act of God & Natural Disaster
               e. Unstable power supply (i.e. inconsistent voltage or lightning)

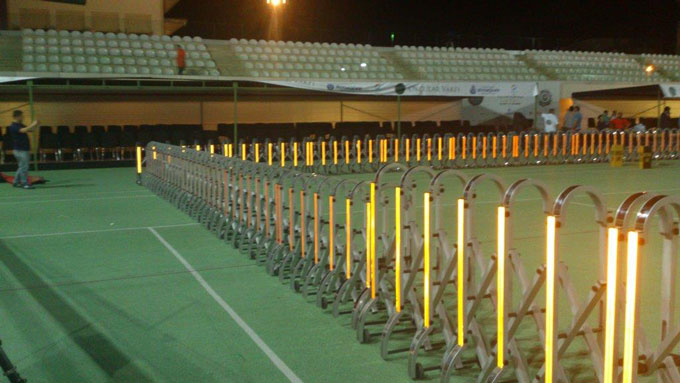

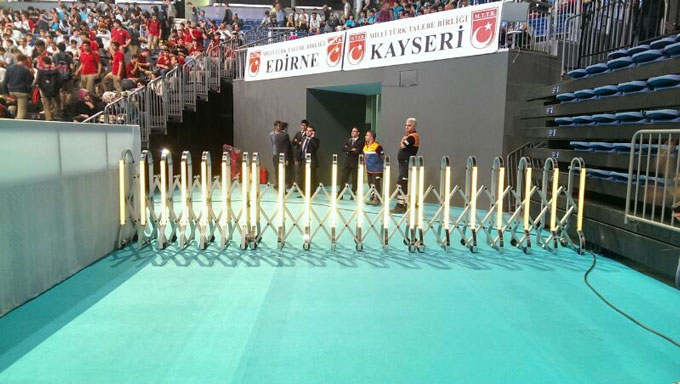

Priject Reference:


Crowd Control Gates- Metro Project.JPG
